Swap bodies

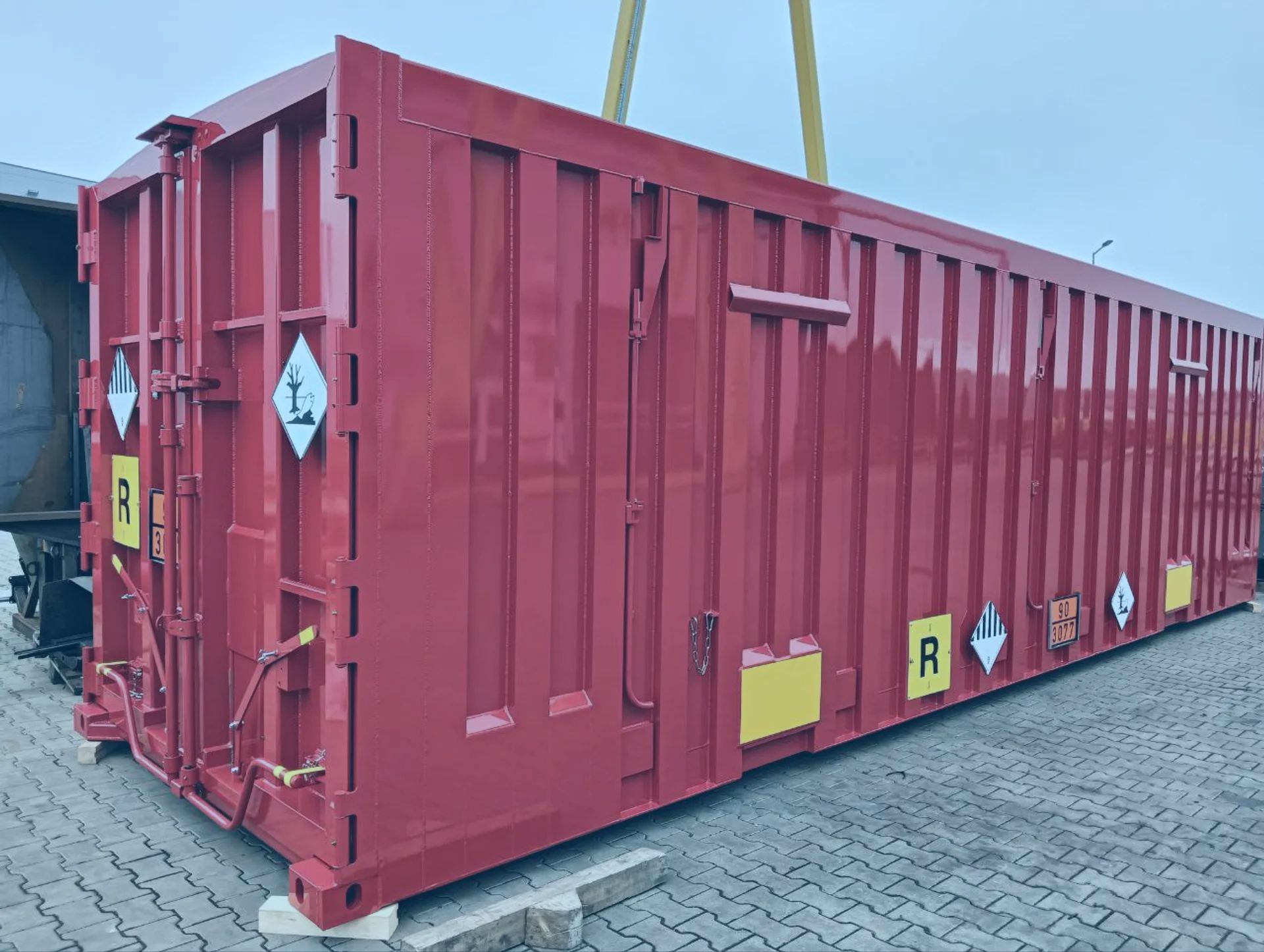

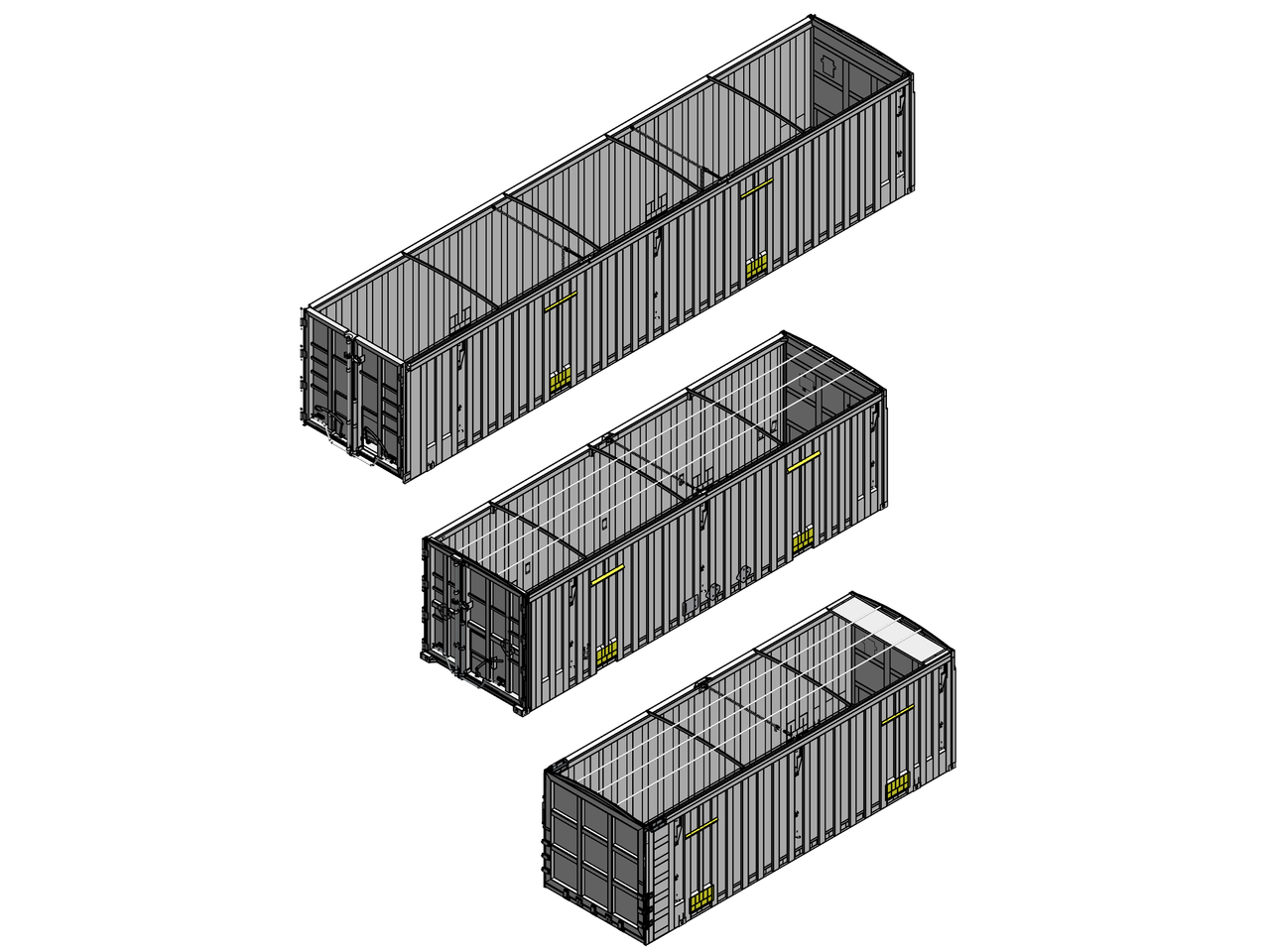

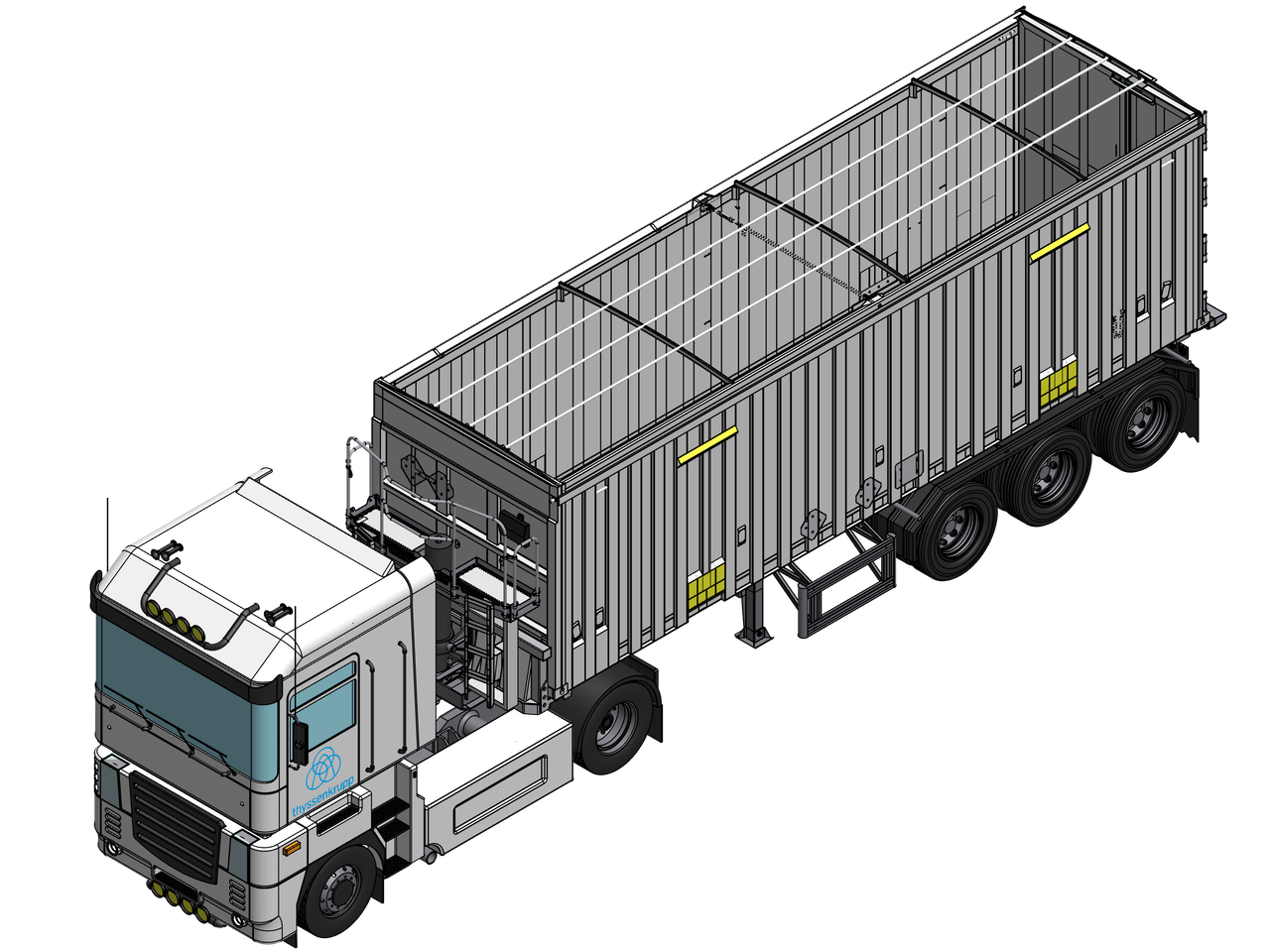

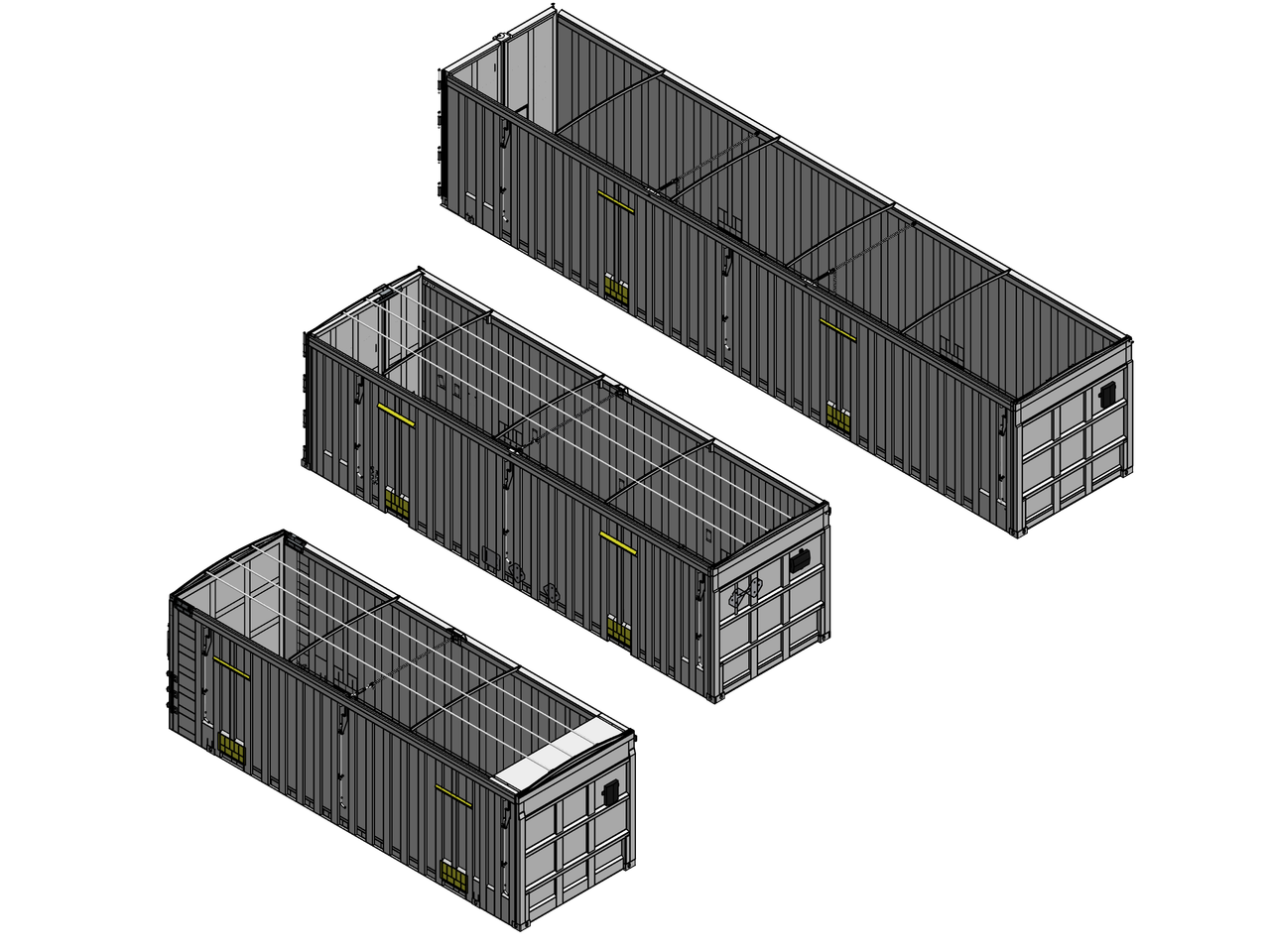

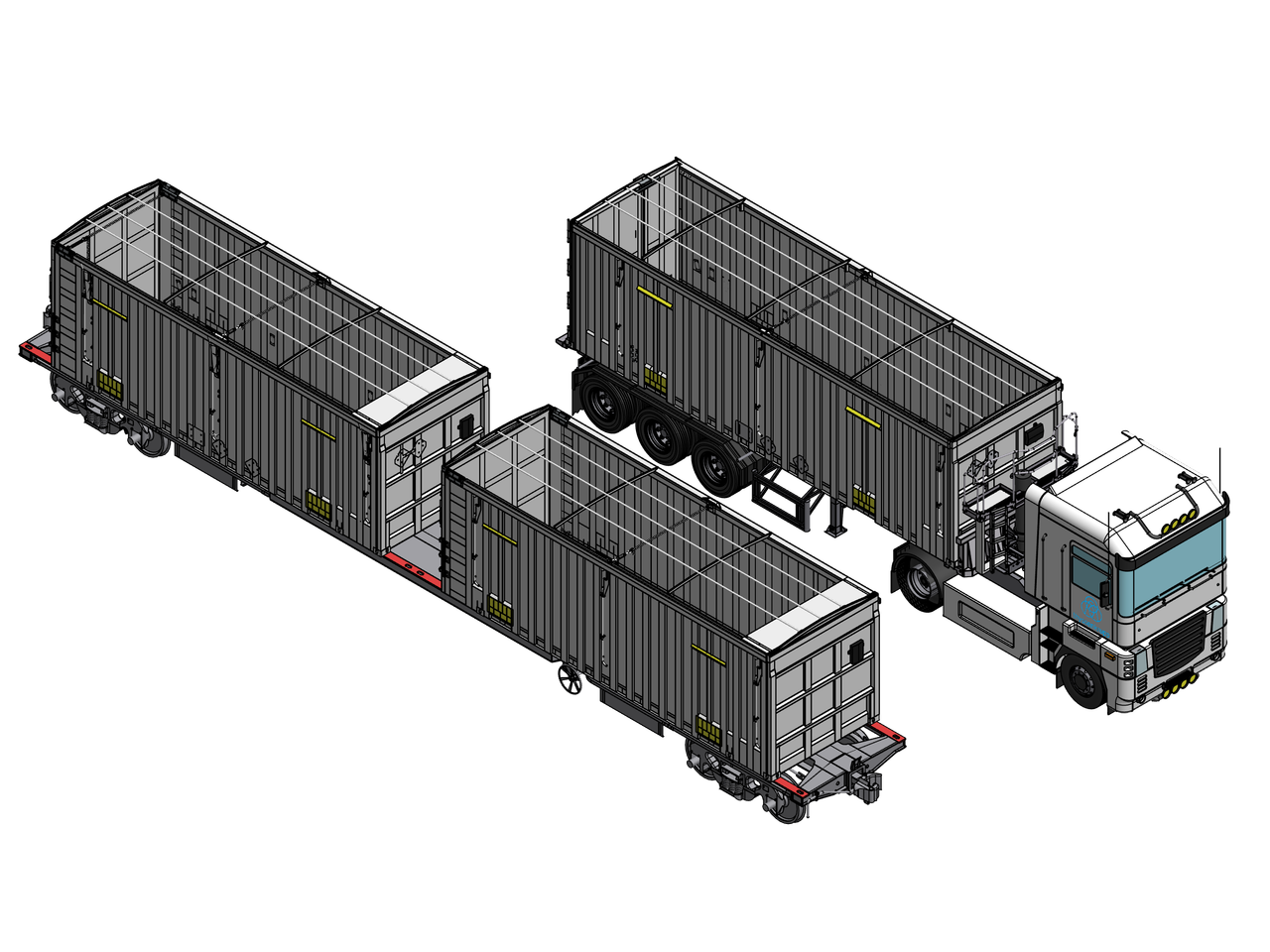

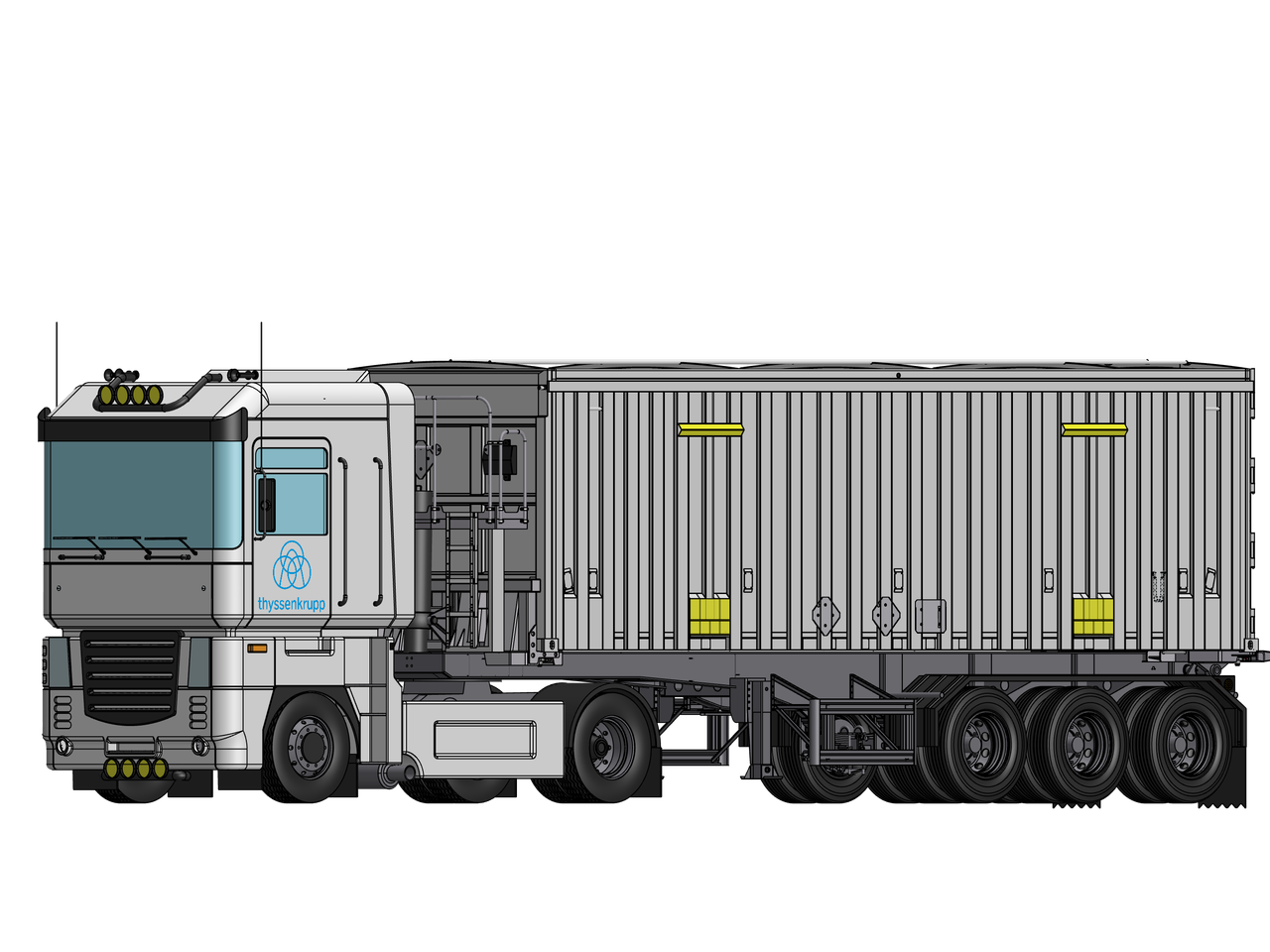

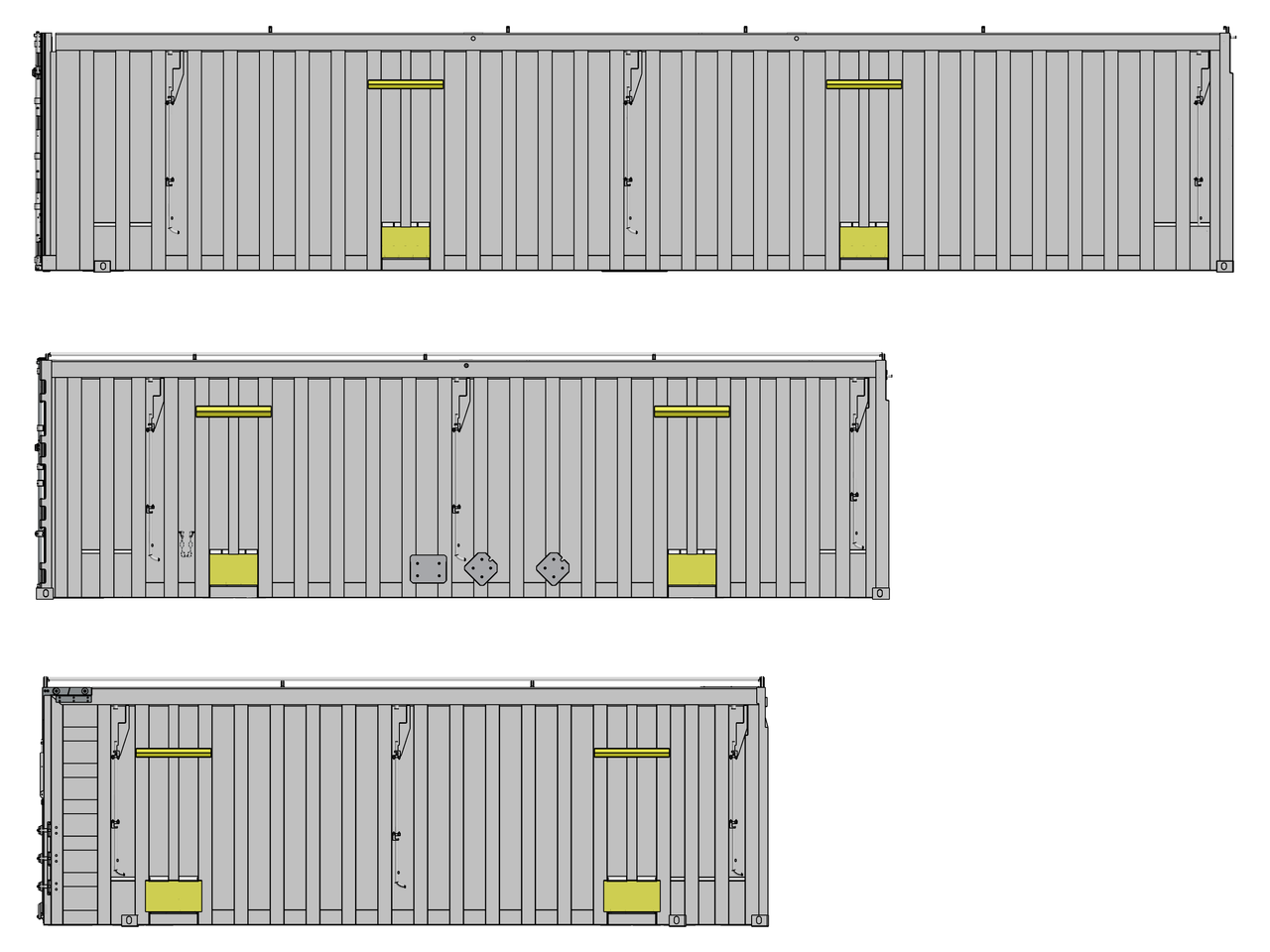

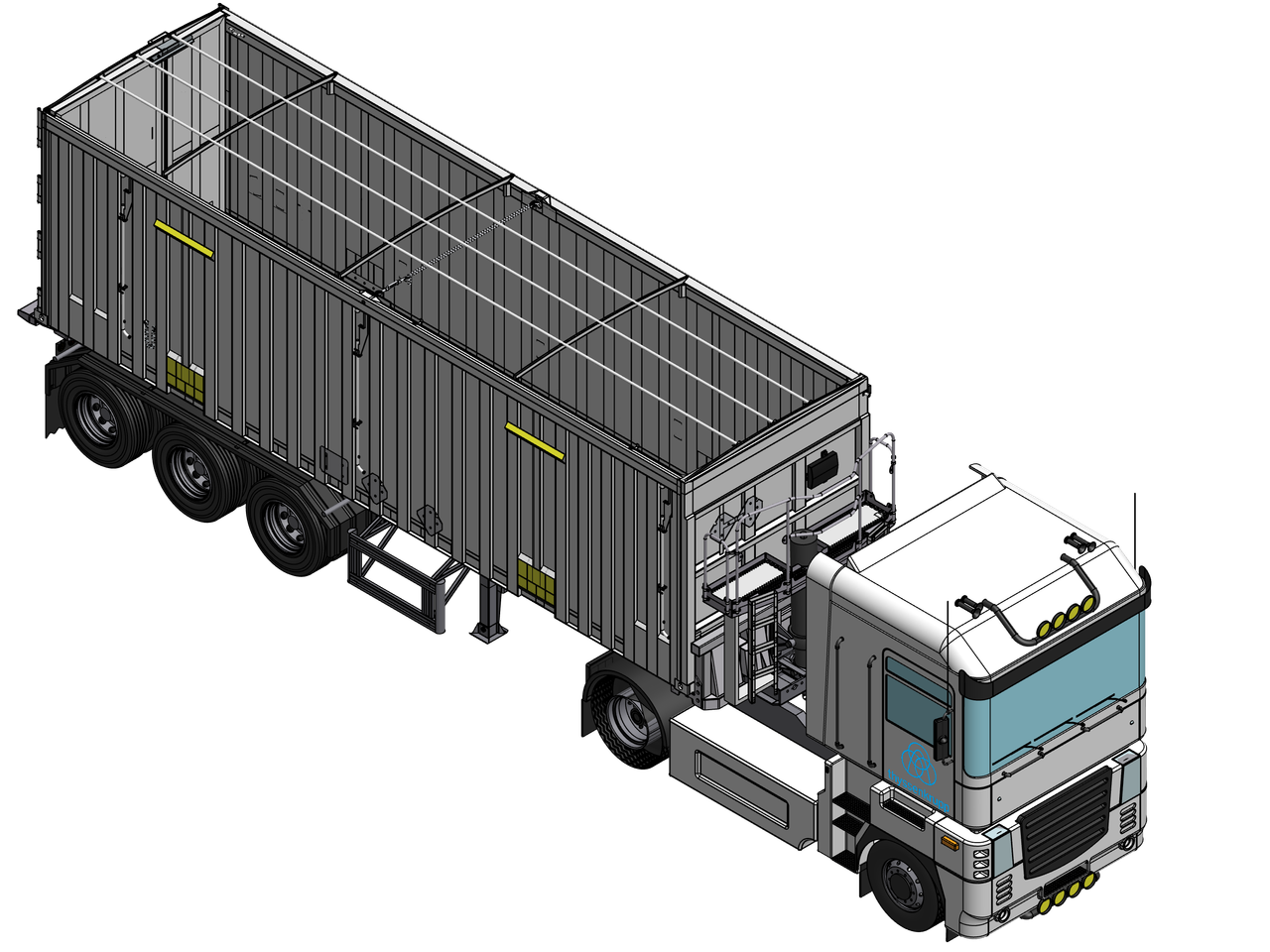

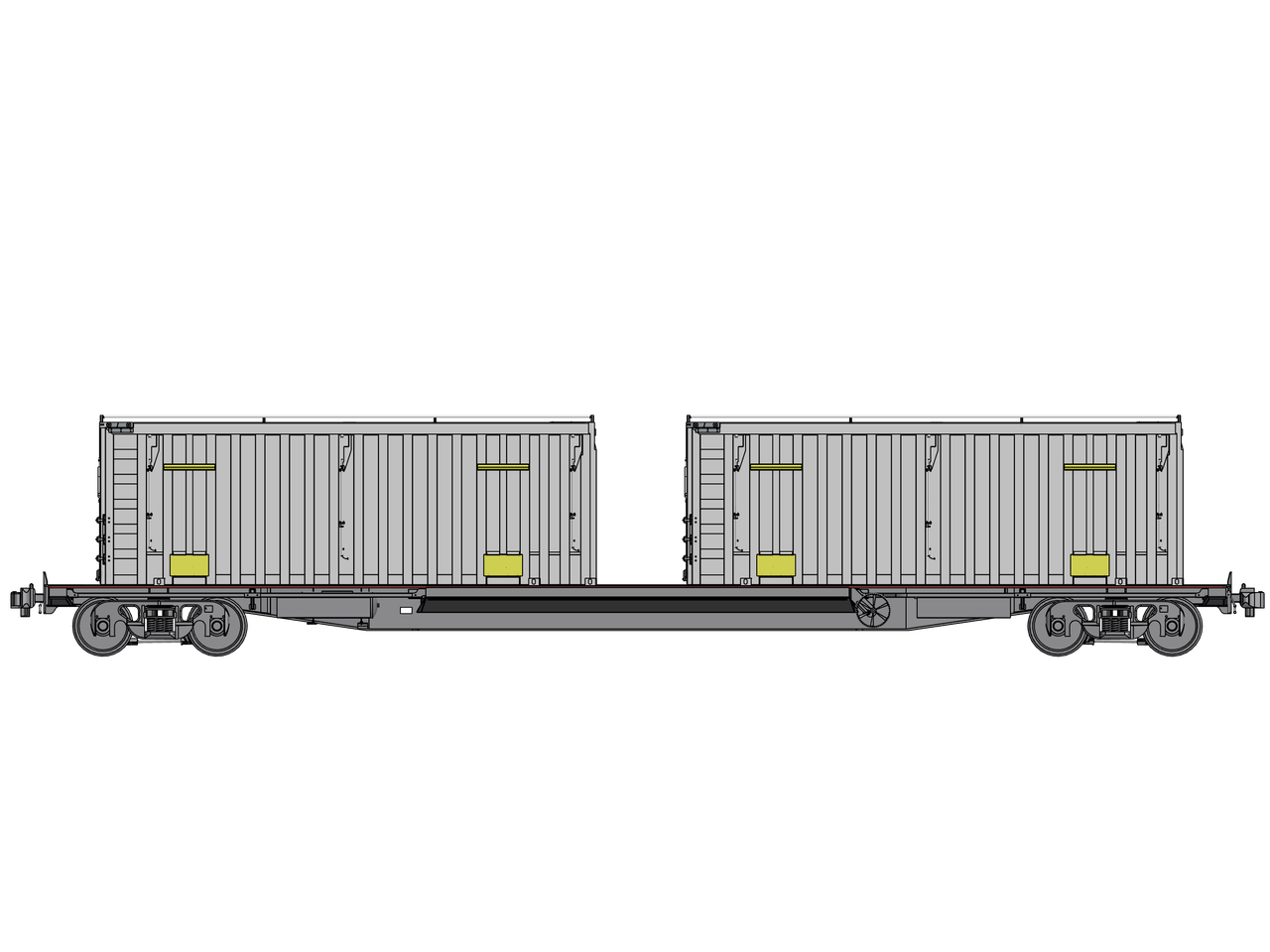

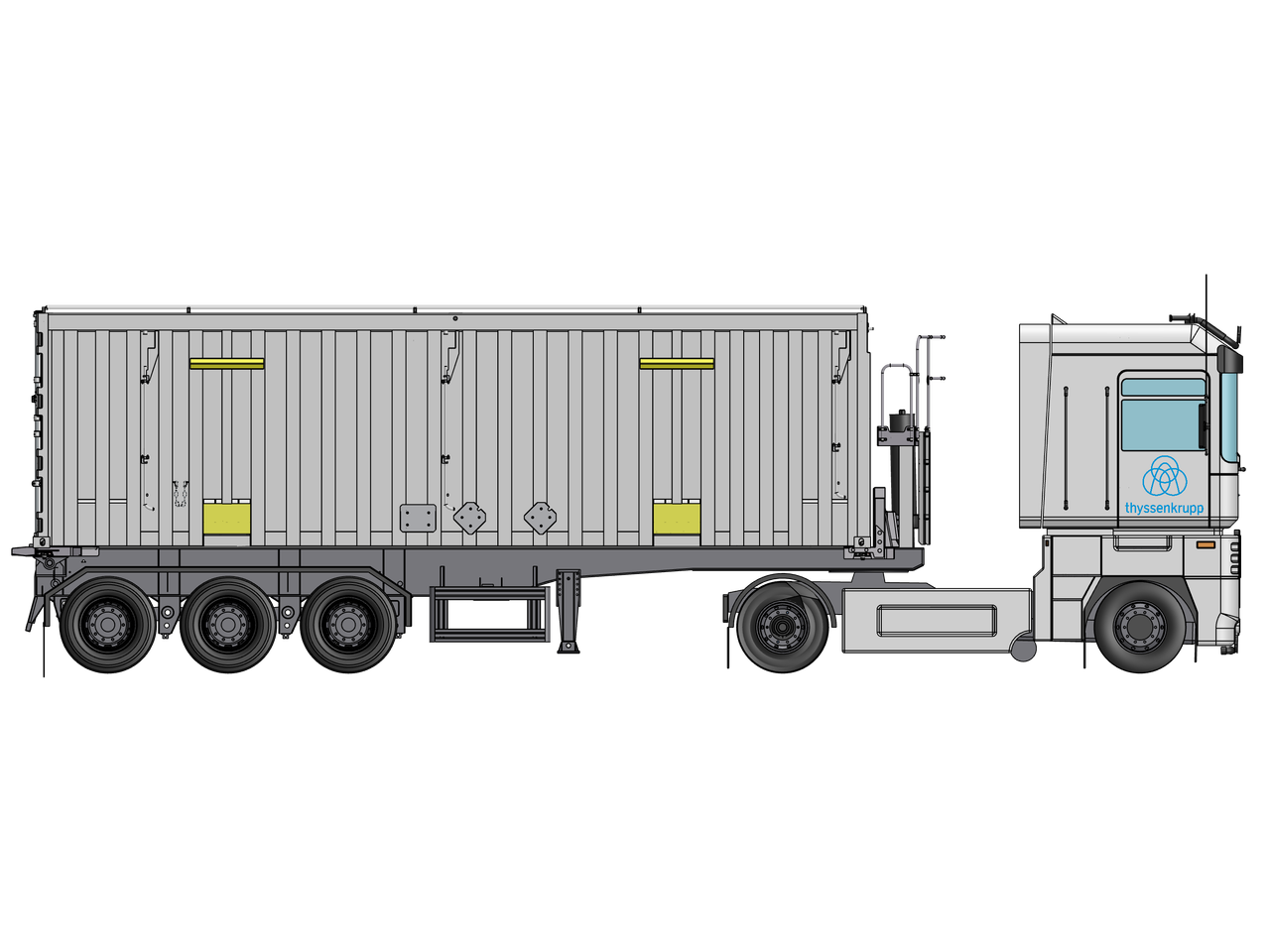

Swap bodies (container) in sizes 20', 24', 30' and 40' in sheet metal and frame construction. Approved UIC 592-4 for combined road and rail transport.

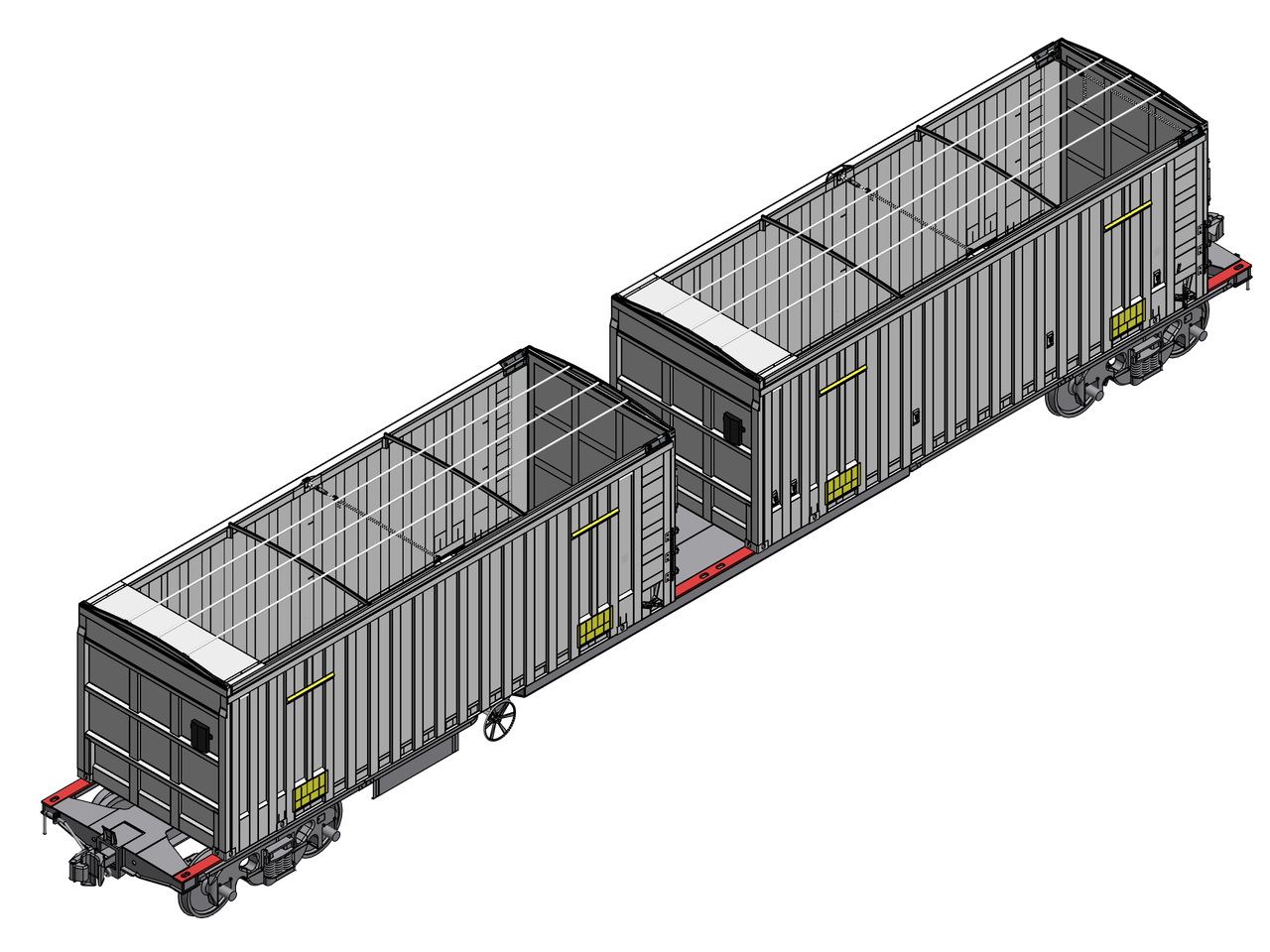

Can also be loaded unhindered from the rear thanks to a removable crossbar. Volume from 35 – 87 m³.

Specification

• Side wall thickness 5 mm

• Sheet metal side walls with 45 mm frame profiles

• Sturdy top and bottom chord

• The end wall made of 5 mm sheet metal with reinforcement profiles

• Floor thickness 7 mm

• Doors in various designs (1/3 & 2/3, 1/2 & 1/2)

• Swing flap

• Grain slider optional

• Corner fittings for containers, aluminum i.A. EN 755, EN AW 7020-T6 i.A. ISO 1161

Areas of application

• Bulk materials of various types

• Sand, gravel, cement

• Ore, coal

• Clay, grain

• Sugar, salt, coffee, flour, granulates, pellets

• Recycling materials (waste, scrap, building materials)
