Measuring devices

Our magnetic measuring and testing devices are best described by their key characteristics: compact, practical and cost-effective.

These easy-to-operate tools play an important role in measuring the polarity and flux density of magnets during inward goods inspections or magnet installation. Our hand-held gauss meter combines the flux density and polarity indication in a single display. The mechanical pole tester also features a double function: it displays the magnet’s polarity as well as the field lines in the stray field. The electronic pole tester is the tool of choice when it comes to measuring the polarity in places that are dark or difficult to access. Its red and green LED display is easy to read even under the most difficult conditions.

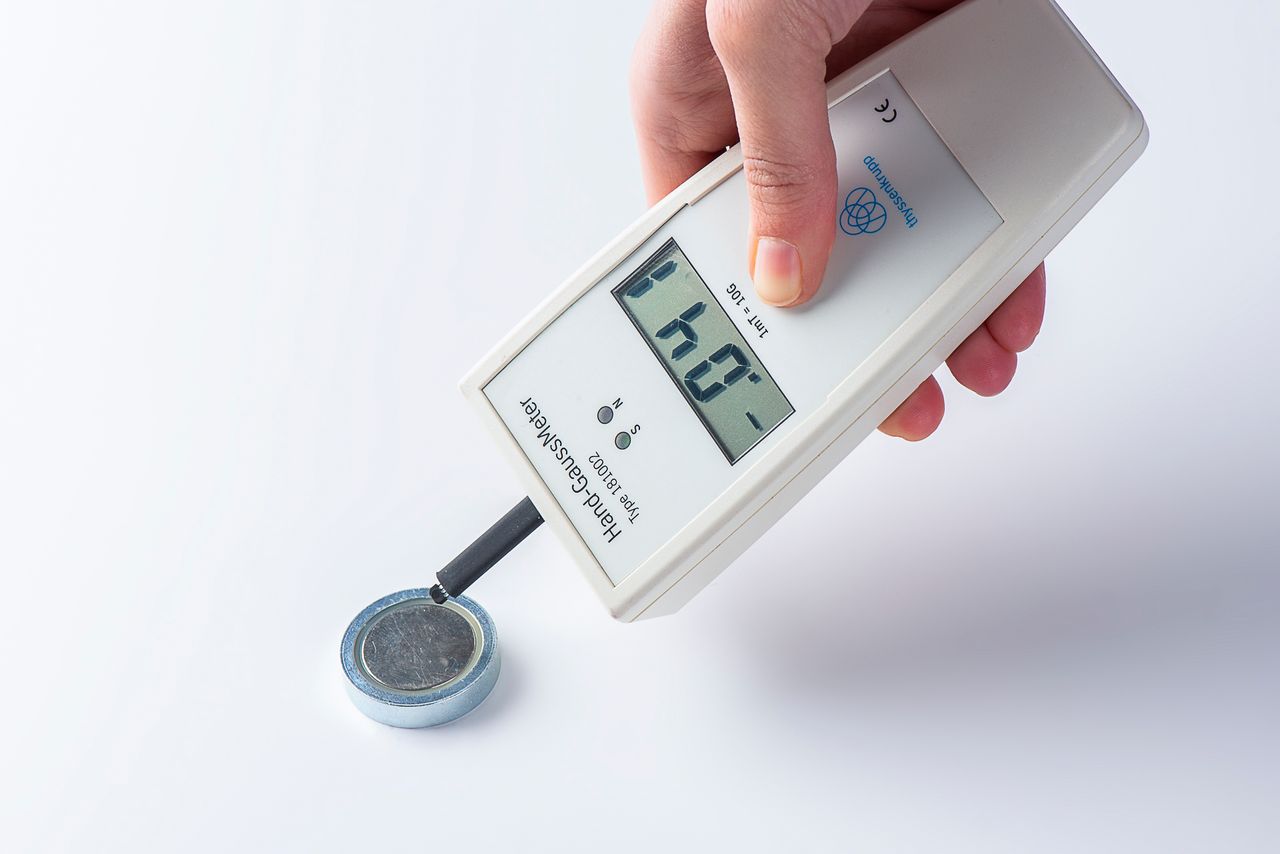

Manual GaussMeter

Take two measurements in a single step with the thyssenkrupp hand-held gauss meter. The device can measure the flux density as well as the polarity, and is very easy to use. It is a helpful tool when it comes to measuring the flux density on the magnet’s surface and in the air gap of systems, for the comparative measurement of magnets, or for rapid inward goods and quality inspections.

Inquire here!

Download product information

Electronic magnetic pole tester

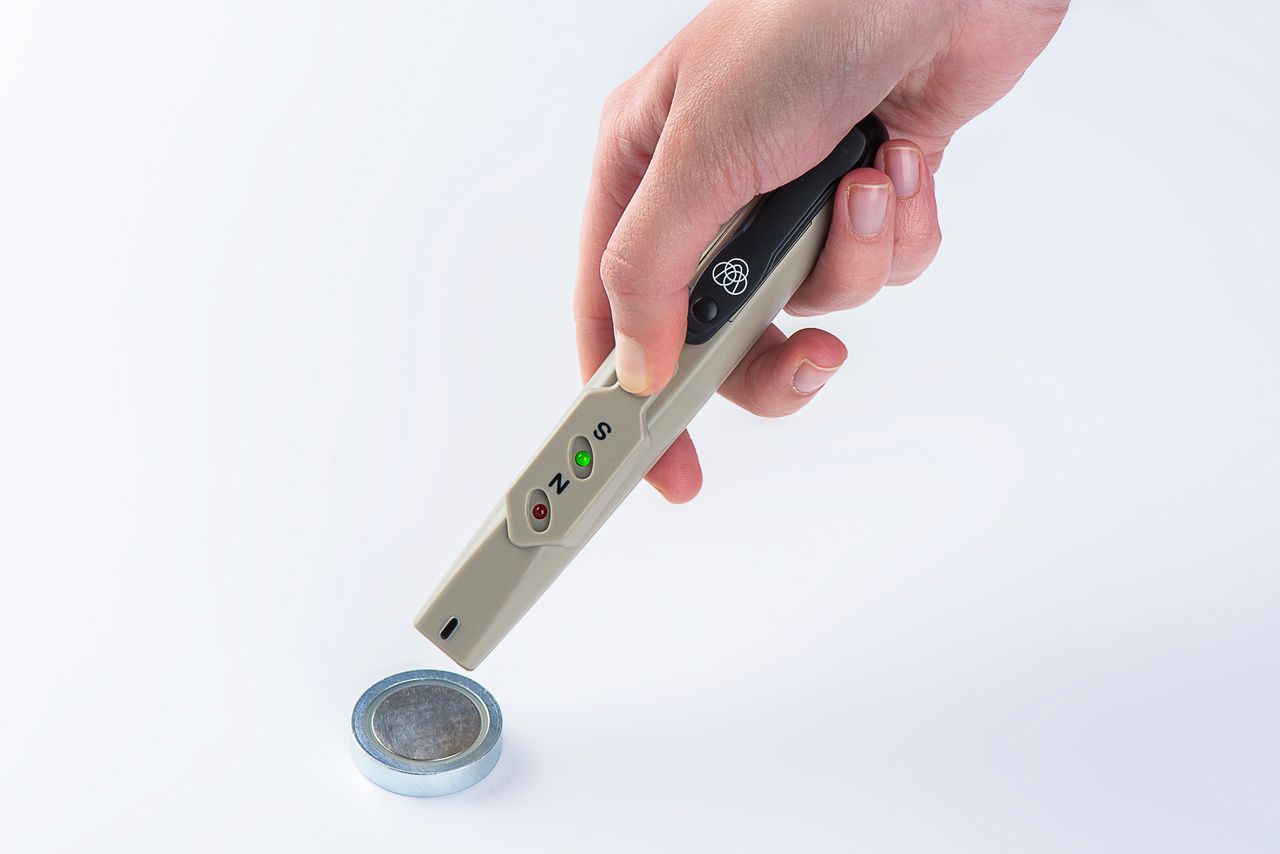

Electronic magnetic pole tester, thyssenkrupp Magnettechnik

The electronic magnetic pole tester is a handy tool, e.g. for measuring stray magnetic fields of packaging materials, checking the magnetization direction, coil testing or taking measurements during the assembly of engines. The device immediately displays the magnetic pole and is clearly readable even in spaces that are dark or difficult to access.

Inquire here!

Download product information

Mechanical magnetic pole tester

Mechanical magnetic pole tester, thyssenkrupp Magnettechnik

Small size, big functions! The pocket-size mechanic magnetic pole tester features a 180° display that shows the magnetic pole as well as the field lines in the stray field. All you have to do for the measurement is place the tip of the pole tester on the magnet.

Inquire here!

Download product information

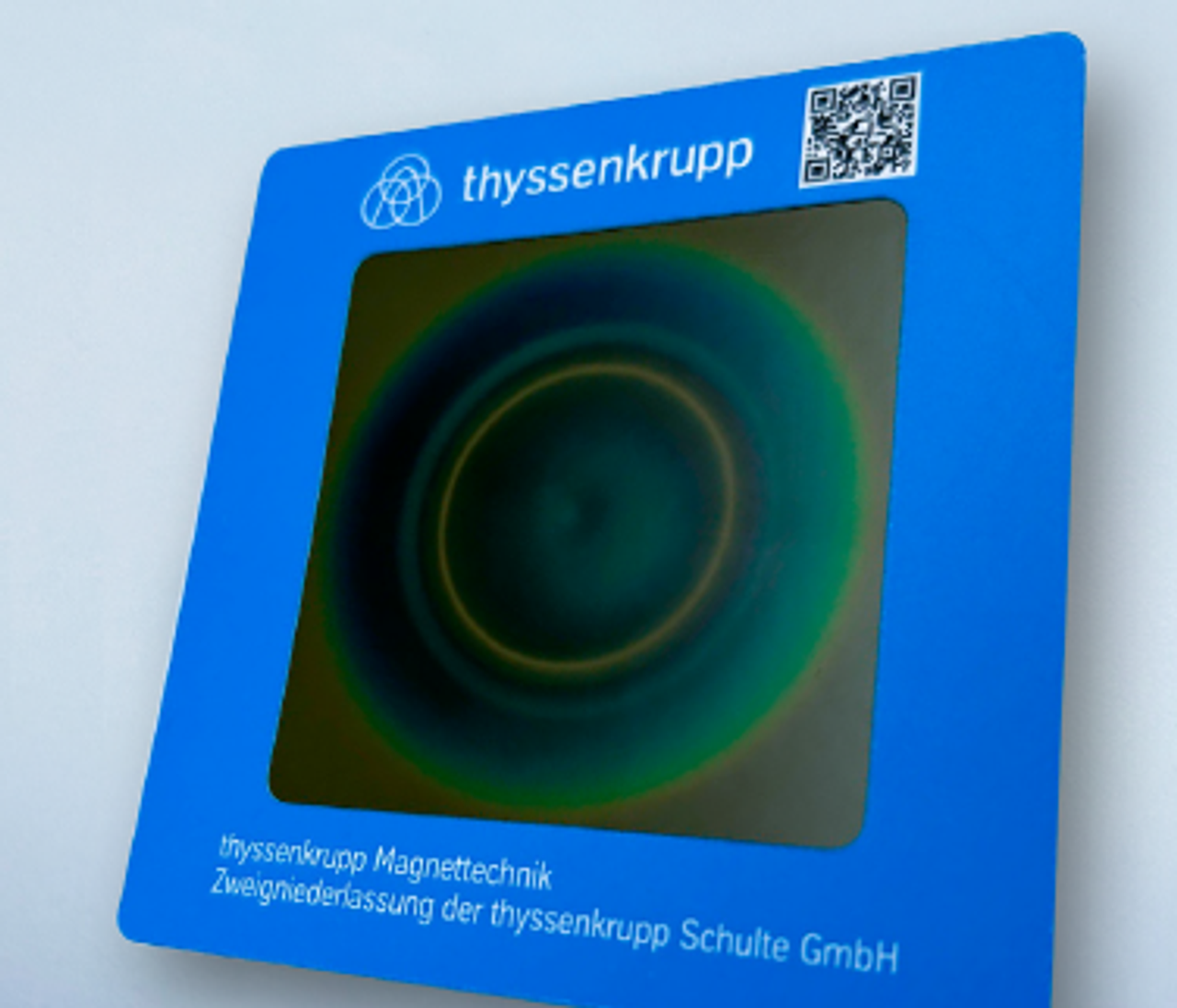

Magnetic field viewing film

Magnetic field viewing film, thyssenkrupp Magnettechnik

The sensor film is a measurement tool that makes both magnetization types and magnetic fields between the magnetic poles visible. When placed on a magnet or magnet system, the magnetic poles will show in a dark color, while the zones between the north and the south pole show in a bright color.

We offer the green sensor film with the standard dimension 60 x 50 mm. Other dimensions are also available on request.

Our sensor film card in credit card format is particularly suitable for practical use. The green sensor film (47 x 47 mm) is securely welded into a transparent card (86 x 54 mm), which may be formatted to user requirements.

Inquire here!

Download product information
